Diamond Saw Blade/Segments for Granite
TAG:Diamond Saw Blade/Segments for Granite

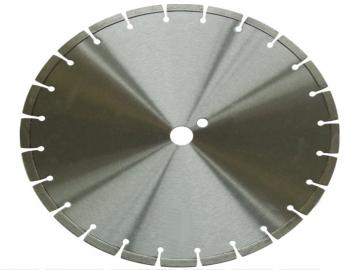

Diamond Saw Blade & Segments for Granite cutting.
This kind diamond saw blade be used for Block Cutting of Granite, Sandstone, Kinds of Hard Stones with quartz, Suitable for Bridge Cutting Machine, Manual Handling Cutting Machine or Table Cutting Machine.
Water cut, cooling with sufficient water, long life time, fast cutting with perfect performance.
If use some coolant in the cooling water would be better.
1. For granite cutting
Segment
Dimensions
Teeth
No
Inner
Bore

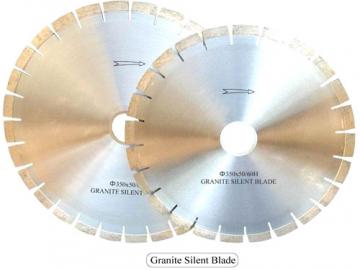

Silent
Non
Silent
L
W
H
250
40
3
10/12/15
17
50/60
√
√
300
40
3
10/12/15/20
21
50/60
√
√
350
40
3.0/3.2
10/12/15/20
24/25
50/60
√
√
400
40
3.2/3.4/3.6
10/12/15/20
28
50/60
√
√
450
40
3.8/4.0
10/12/15/20
32
50/60
√
√
500
40
4
10/12/15/20
36
50/60
√
√
600
40
4.6
10/12/15/20
42
50/60
√
√
700
40
5
10/12/15/20
50
50/60
√
√
800
40
5.5
10/12/15/20
46
50/60
√
√
2. For Granite large size block cutting
Segment Dimension
Thickness of Steel Core
Teeth No.
L
W
H
900
24
7.0/6.5
12/15/20
5.0mm
64
1000
24
7.0/6.5
12/15/20
5.0mm
70
1100
24
7.4/6.8
12/15/20
5.5mm
74
1200
24
7.4/6.8
12/15/20
5.5mm
80
1300
24
8.0/7.5
12/15/20
6.0mm
88
1400
24
8.5/8.0
12/15/20
6.5mm
96
1600
24
9.0/8.4
12/15/20
7.2mm
108
1800
24
10.5/9.5
12/15/20
8.0mm
120
2000
24
10.5/9.5
12/15/20
8.0mm
128
2200
24
11.5/10.5
12/15/20
8.5mm
132/136
2500
24
12/11.5/11
15/20
9.0mm
140
2700
24
12/11.5/11
15/20
9.0mm
140/150
3000
24
12.5/12/11.5
15/20
10.0mm
160
3500
24
13/12.5/12
15/20
10.0mm
180
The above specification is only for Reference, other or special specification can be ordered by customers.
Please try best to offer below information when you are placing order:
Dia.: (inch or mm)
Bore size: (inch or mm)
Size and position of the fitting holes(it is better to send a drawing)
Segment No. (teeth /blade)
Segment Size (LxWxH, and thickness of steel core if possible)
Segment Formation(sandwich type or multiple line type)
Cutting target (for granite, sandstone or other hard stone including quartz)
Order quantity (how many pcs of blade or how many sets of segment)
Machine power (motor/rotation speed if possible)
Feeding speed (meter/minute)
Expected cutting depth (mm, at every turn, to and from)
Cooling system (water cooling or oil cooling, is it including coolant, the rate, liter/m)
Expected delivery time
